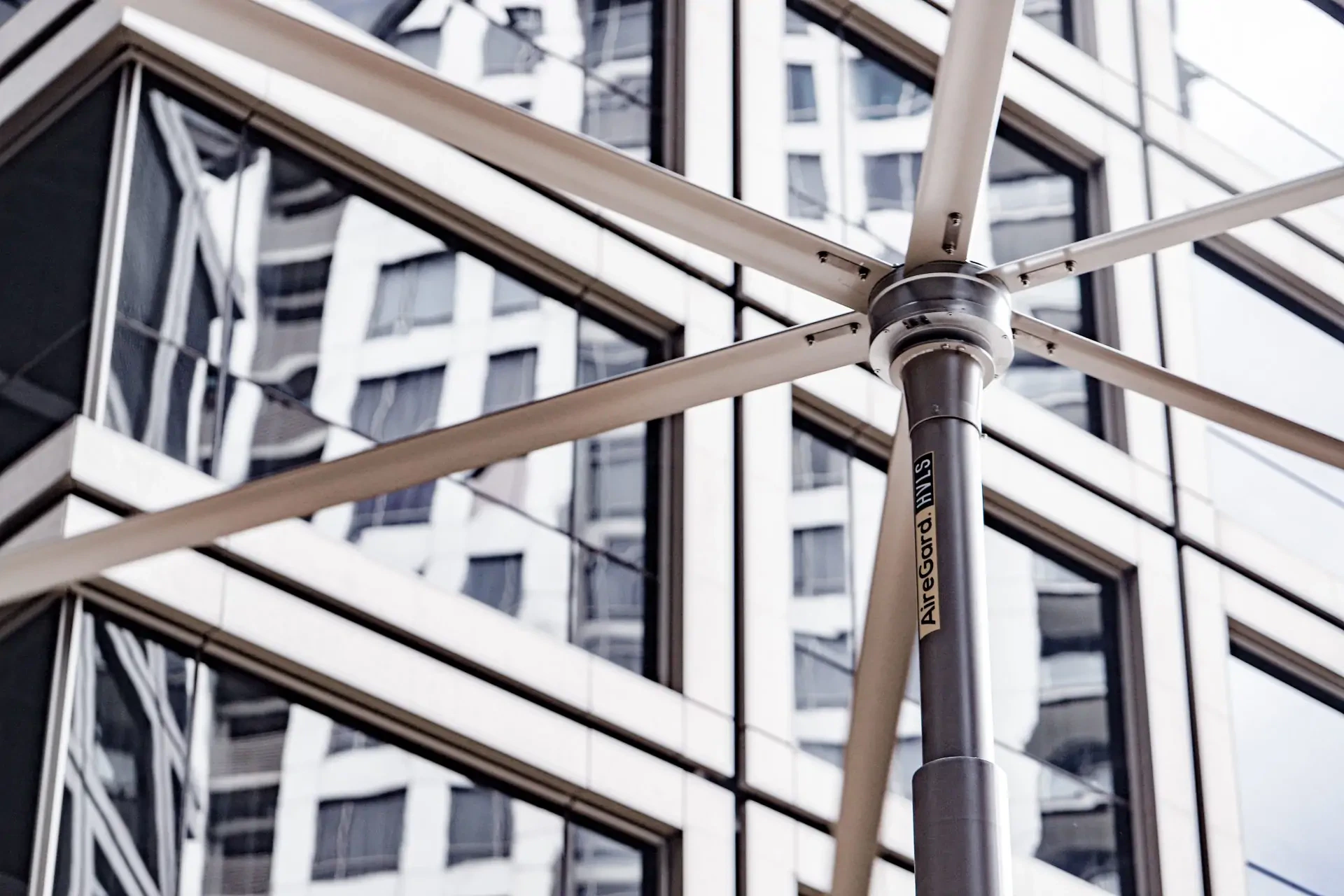

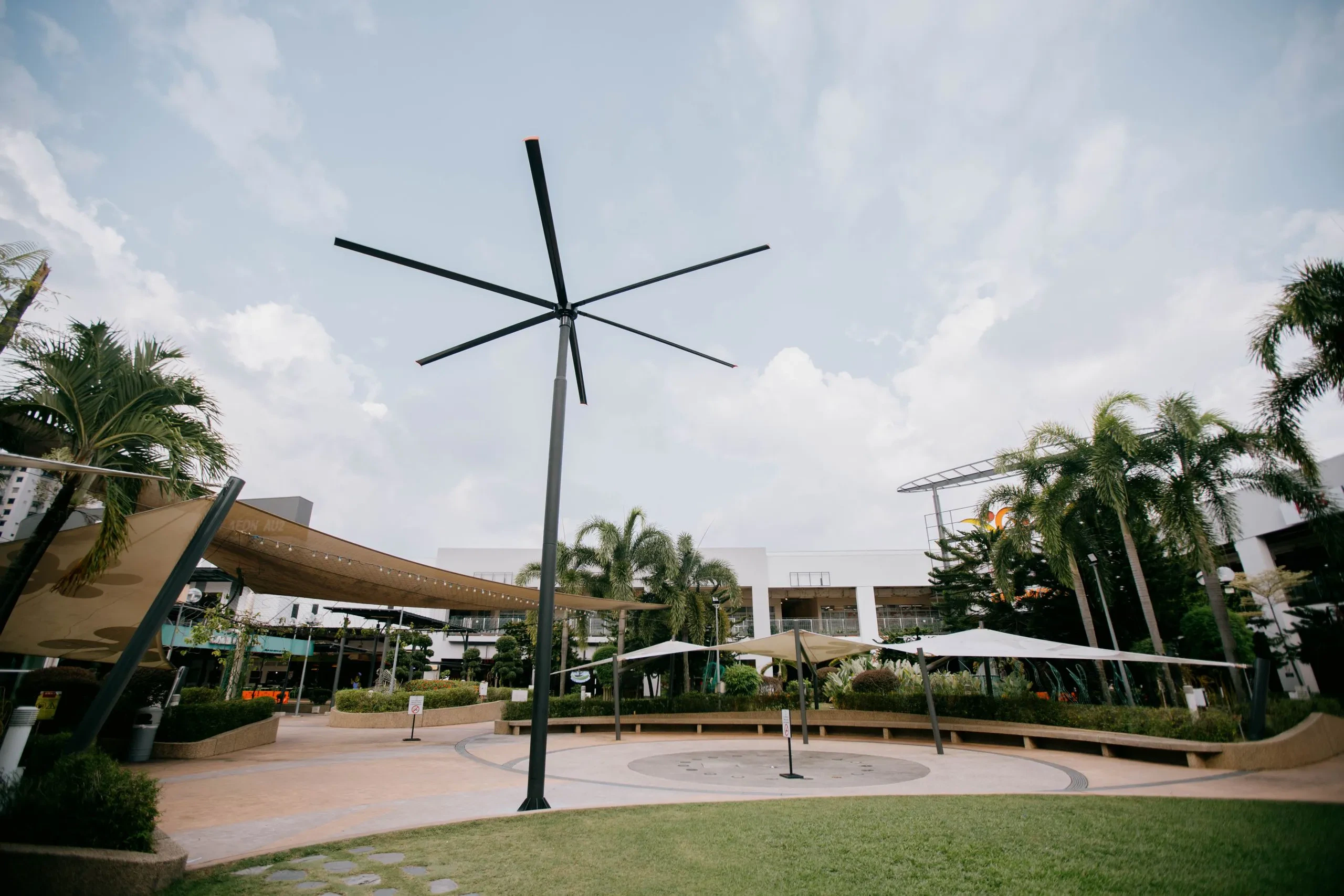

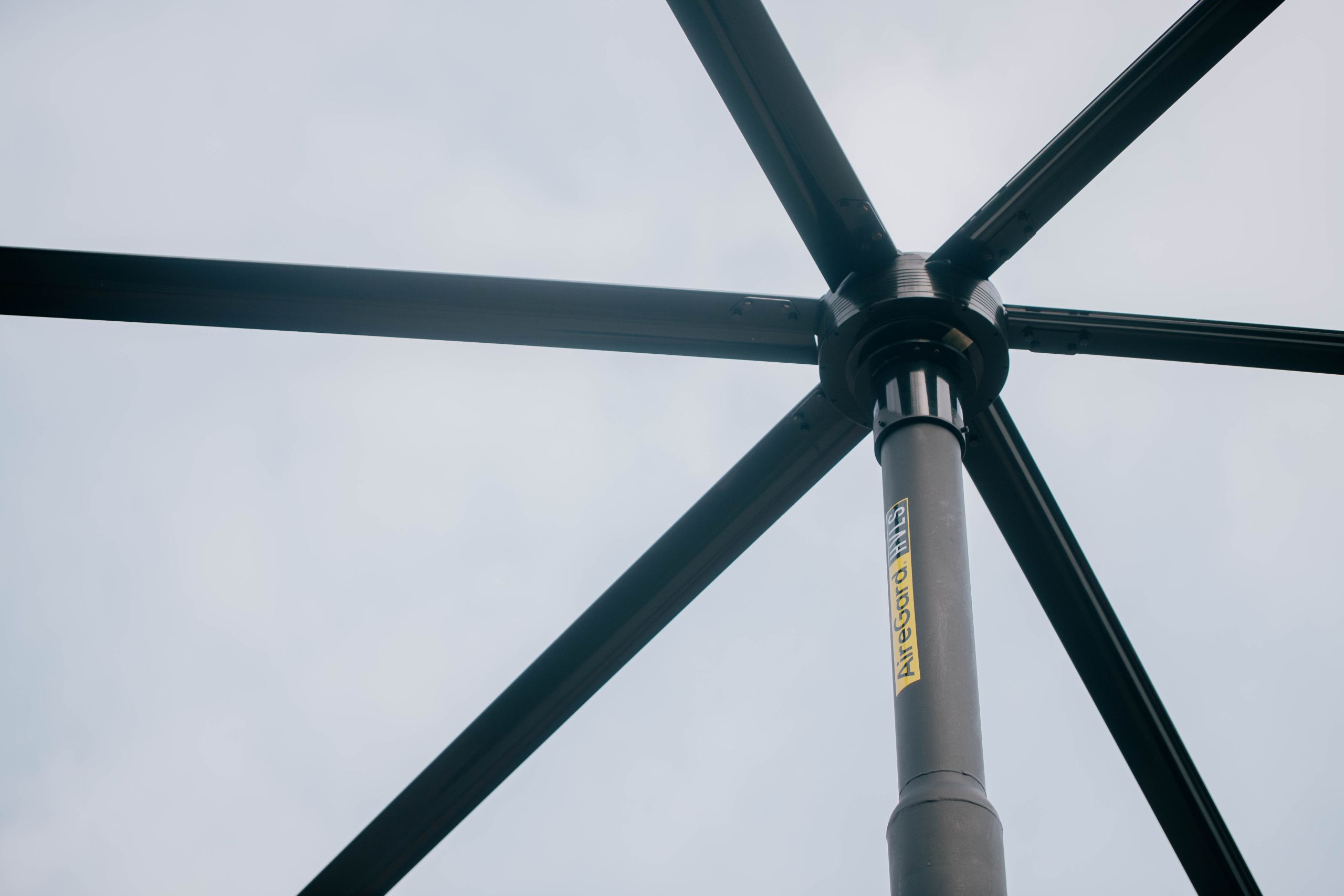

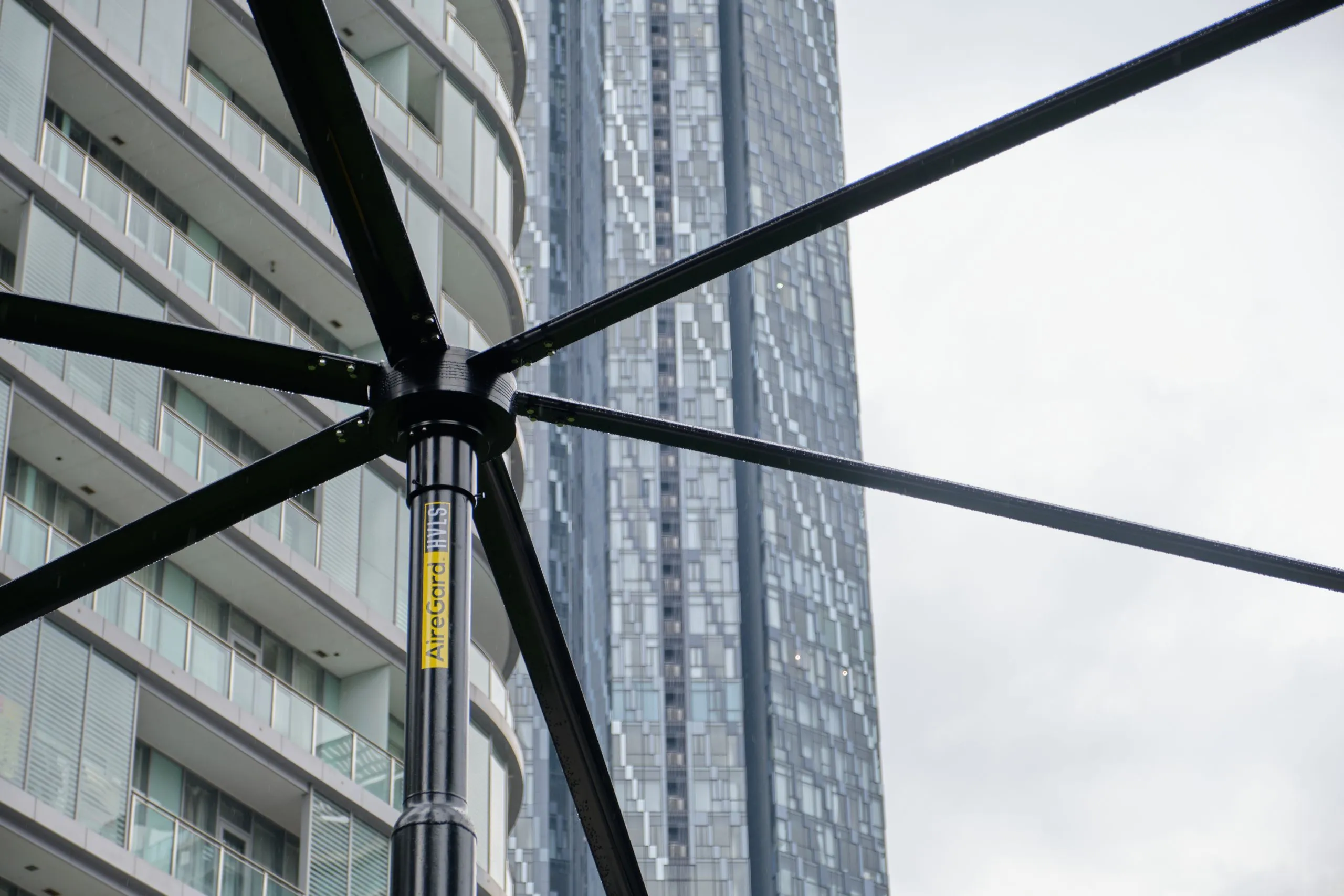

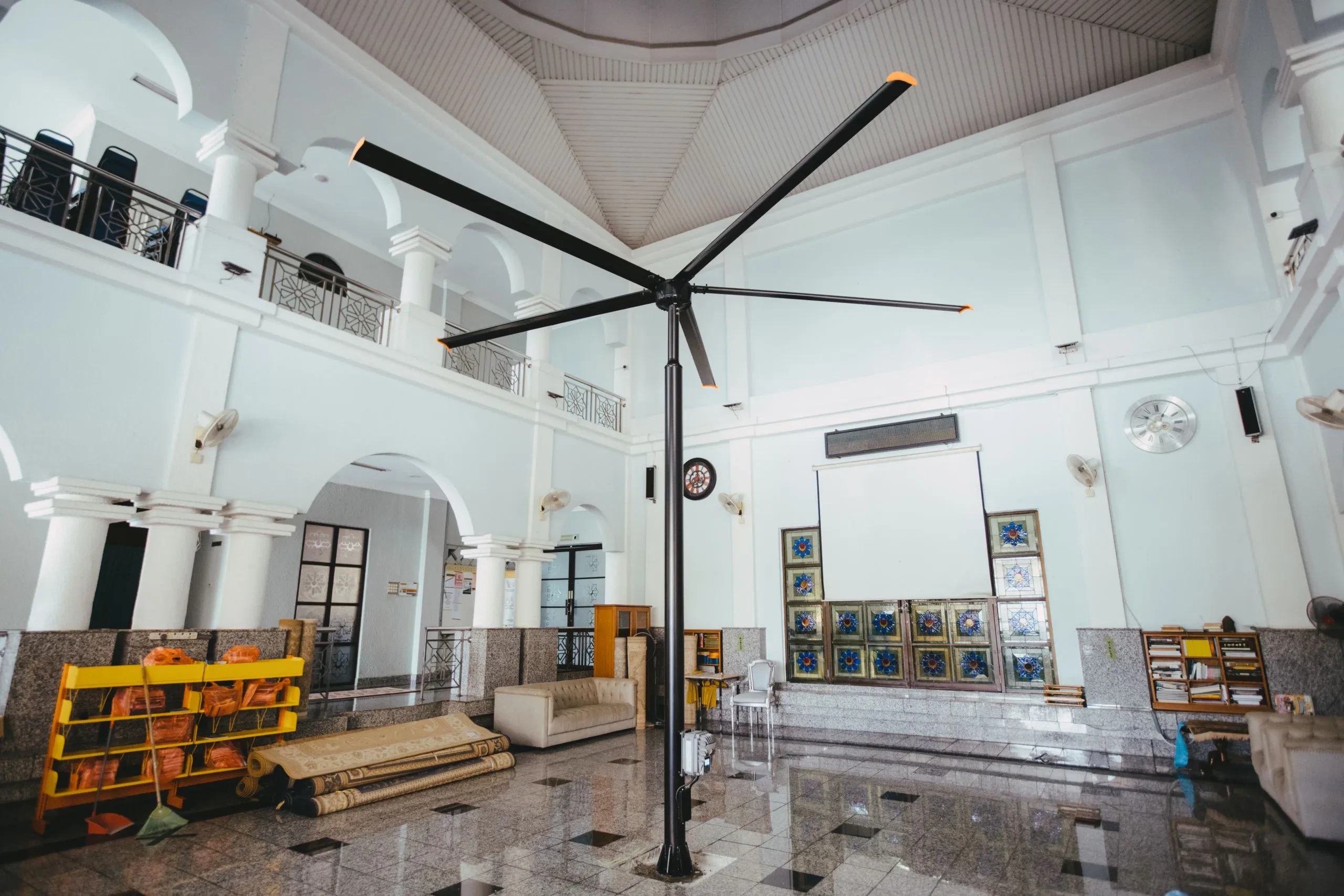

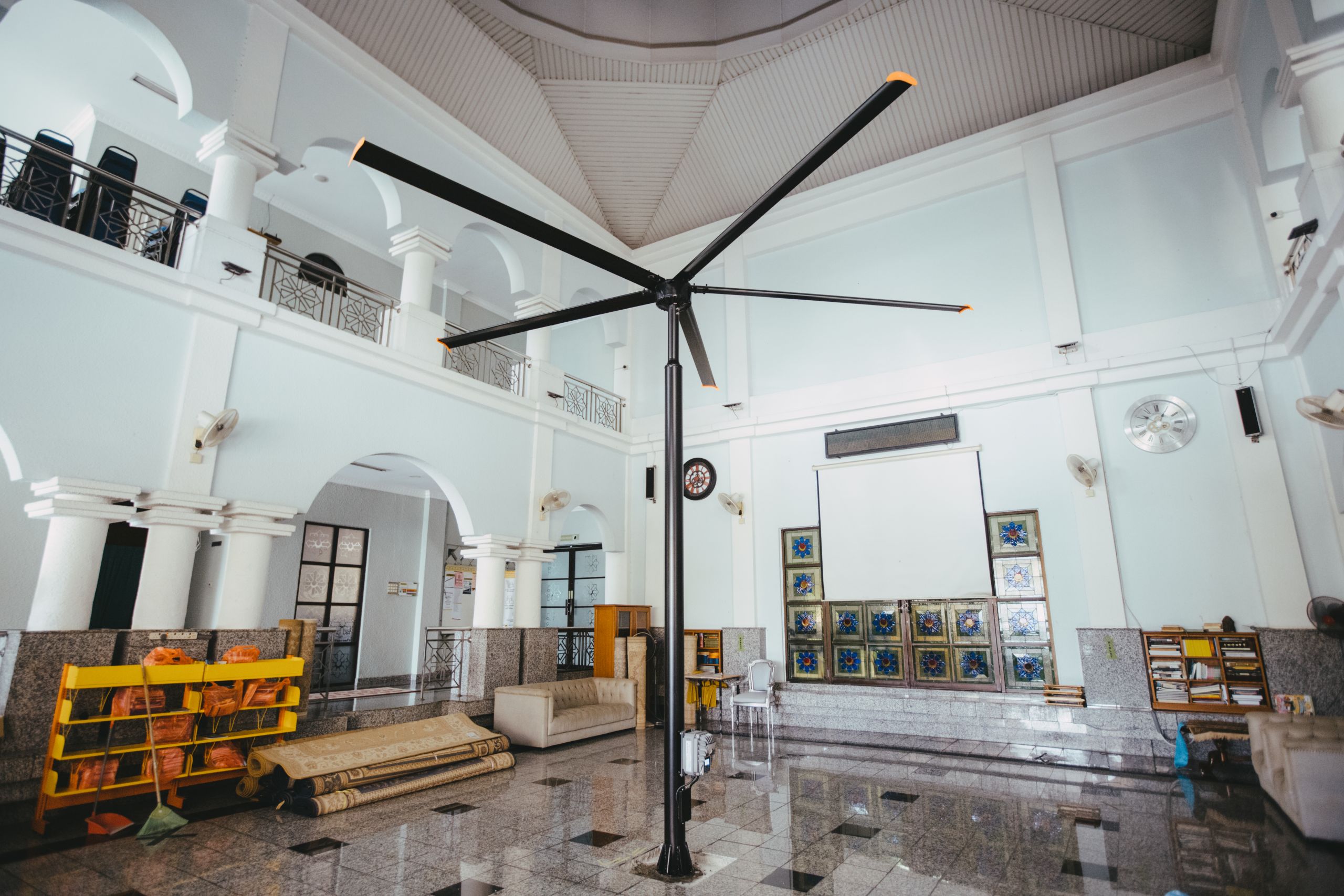

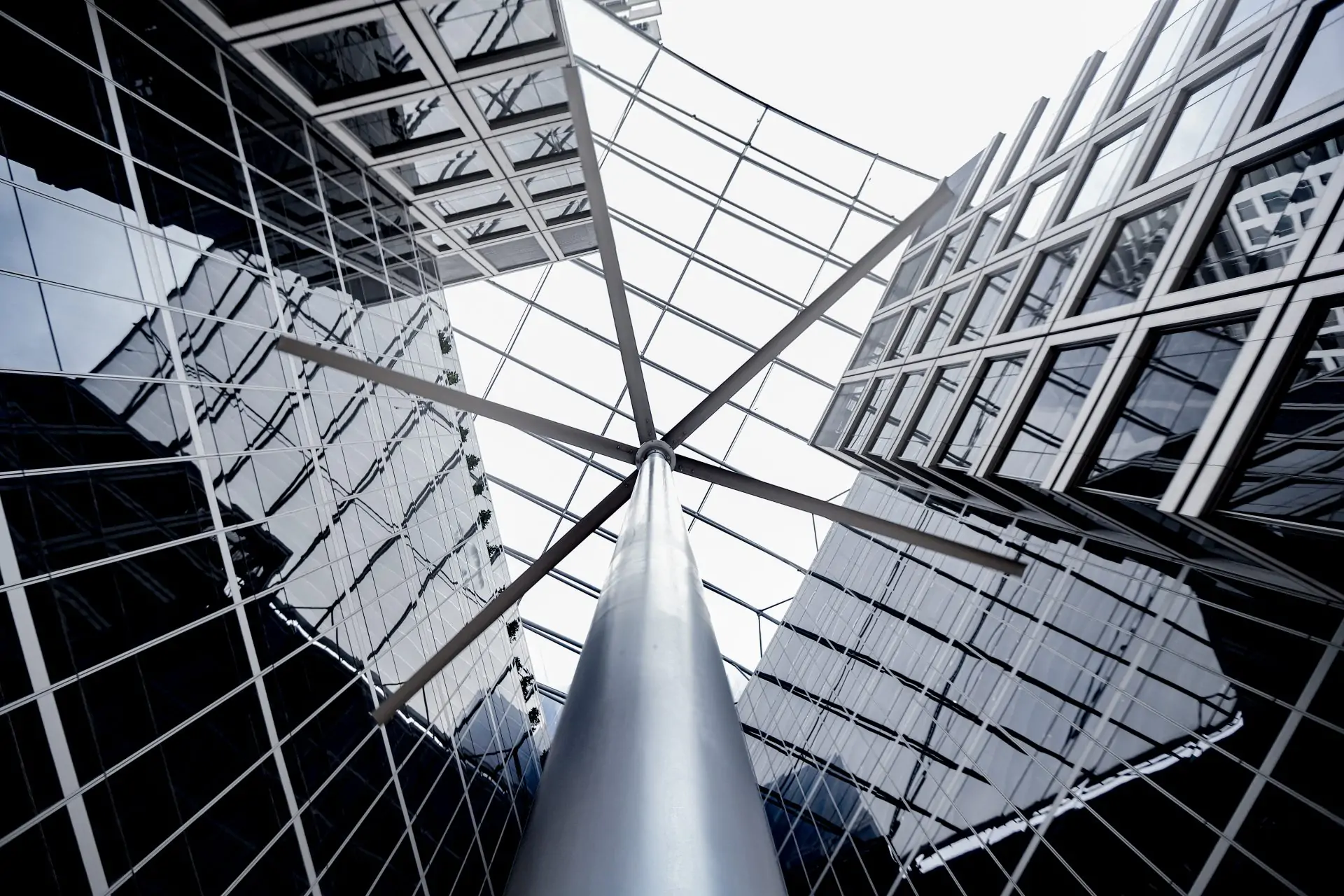

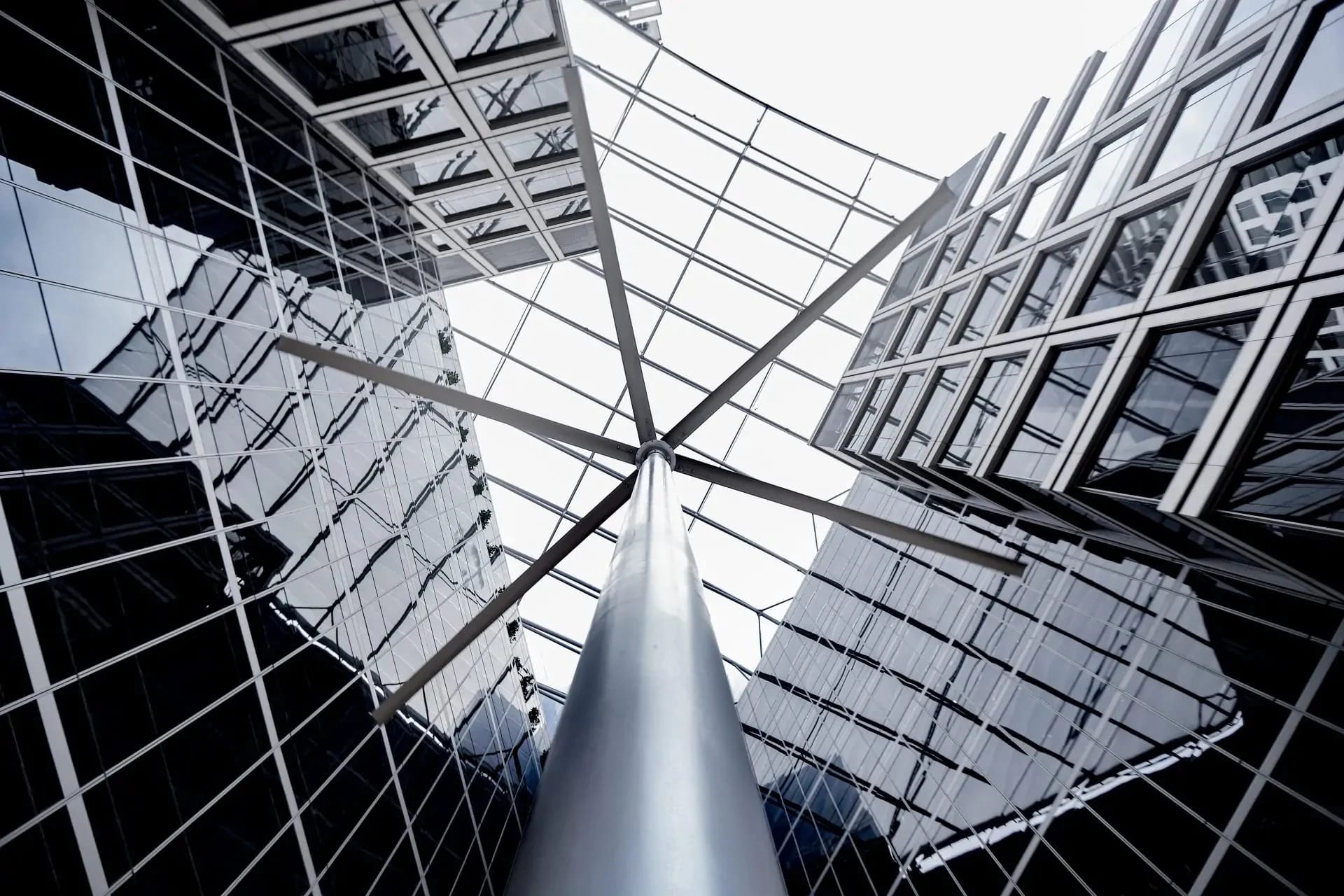

PXP Series
The AireGard PXP Pole Fan combines powerful airflow, ultra-silent operation, and energy-efficient design to enhance comfort in large working spaces. Equipped with AireGard’s NeoDrive PMSM direct drive motor, it delivers high torque, low noise, and exceptional durability in a compact, elegant form.
Powerful airflow. Ultra-silent comfort. Engineered for efficiency.
The AireGard PXP Pole Fan is designed to improve air circulation and comfort in large industrial and commercial environments. Powered by a permanent magnet external rotor motor with variable frequency speed control, it offers high efficiency, energy savings, and exceptionally quiet performance.
At the heart of the PXP is AireGard’s NeoDrive PMSM Direct Drive System, which delivers greater airflow, torque, and reliability with only two moving parts. This design reduces sound levels by up to 50% compared to conventional gearbox fans, ensuring quiet and consistent performance.
Main Features
-
Excellent Coverage: Provides 3-dimensional air comfort with effective coverage of up to 1,000 m² and beyond.
-
Ultra-Silent Operation: Operates as quietly as 38 dB, maintaining a peaceful and comfortable environment.
-
Aerofoil Winglet: Reduces drag and boosts downward airflow, generating up to 40% more air than typical competitors.
-
Aviation-Grade Aerofoil Blades: Made from magnalium aluminum alloy with a fluorocarbon coating for superior strength and corrosion resistance. Each blade includes three vertical stiffeners to prevent fatigue and enhance durability.
-
Compact & Elegant Design: Lightweight, streamlined body with a modern appearance that fits seamlessly in any space.
The AireGard PXP Series redefines industrial comfort combining power, silence, and style for a new standard in air movement performance.
Category:
- Upper Room Clean Air System (URCAS)
- HVLS
- Fresh Air Series
- Single
- Industrial Fan
- Energy Recovery System Series
- Vent Kits
- Ventilation
- Hand Dryer
- Accessories
- URCAS test
Model:
Available in custom colour, upon request
Sizes (based on ft)
- PXP-12
- PXP-16
- PXP-20
- PXP-24
Applications:
- Amusement Park
- Dairy
- F & B
- Factory
- Farm
- Hospitality
- Malls
- Mosques
- Poultry
- Warehouses
- Workshop
Specifications:
| Model |
PXP-12 |
PXP-16 | PXP-20 |
PXP-24 |
||||||
|
Blade Diameter |
12 ft (3.7 m) | 16 ft (5 m) | 20 ft (6.1 m) |
24 ft (7.3 m) |
||||||
| Blade Style |
Aerofoil with winglet |
|||||||||
| Blade Material |
Magnalium (Aluminium Alloy), Carbon Fluorine Treated Surface |
|||||||||
| Number of Blades |
5 |
6 |
||||||||
|
Performance & Power |
||||||||||
| Max. Displacement |
176,573 CFM |
353,147 CFM | 406,119 CFM |
458,823 CFM |
||||||
| Variable Speed |
100 RPM |
80 RPM | 65 RPM |
55 RPM |
||||||
|
Max. Power Usage |
0.37 kW | 0.75 kW | 1.1 kW |
1.1 kW |
||||||
| Rated Current (Max) |
1.9 Amps |
3.2 Amps | 6 Amps |
6 Amps |
||||||
| Input Voltage |
220 – 240 V/1P |
|||||||||
|
Weight & Dimensions |
||||||||||
| Weight (Motor / Fan) |
38 kg |
51 kg |
83 kg |
112 kg |
||||||
|
Motor |
||||||||||
| Motor Type |
NeoDrive Permanent Magnet Synchronous Motor |
|||||||||
| Drive Train |
Direct Drive Gearless |
|||||||||
| Max. Torque |
42 Nm |
110 Nm | 162 Nm |
191 Nm |
||||||
| Mechanical Efficiency |
Direct drive rotation, efficiency ≥ 0.96 % |
|||||||||
| Max. Ambient Temperature for Operation |
80 |
|||||||||
| Degree of Protection |
IP65 |
|||||||||
|
Cooling System |
Natural Cooling |
|||||||||
| Sound Level |
≤ 38 dBA |
|||||||||
|
Controls |
||||||||||
| Control Type |
Variable Frequency Drive (Inverter Drive) |
|||||||||
| Features |
Rugged construction, all metal enclosure, IP66 protection class |
|||||||||
| Manufacturer |
EURA Drives Germany |
|||||||||
| Max. Ambient Temperature for Operation |
-10 to 40 |
|||||||||
|
Warranty |
||||||||||
| Warranty |
5 Years ** |
|||||||||
| ** Subject to Terms & Conditions. | ||||||||||
